DynamicOrgan® O2-Sensor System Beginner - 3µm - S

The DynamicOrgan® O₂-Sensor System Beginner contains everything you need to set up your organ-on-chip workflow with live oxygen measurement, including the PyroScience FirePlate together with all consumables and a peristaltic pump required for biochip perfusion.

This kit combines the 2-channel biochip (BC002) with biocompatible oxygen sensor spots from PyroScience for contactless oxygen monitoring directly inside the biochip. Sensor spots enable the measurement of general oxygen levels in the top channel or the calculation of oxygen consumption between in- and outlet in the bottom channel.

Readouts are performed with the PyroScience FirePlate and REDFLASH technology, detecting an oxygen-dependent luminescence signal.

Already have a compatible pump and the PyroScience FirePlate? The DynamicOrgan® O₂-Sensor Kit provides all required consumables to perform real-time on-chip oxygen measurements.

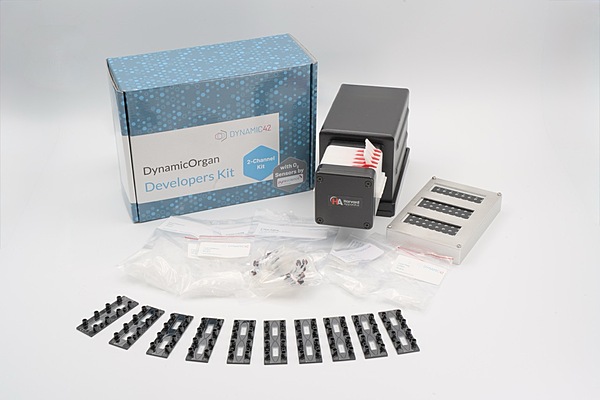

Contents

1 x PyroScience FirePlate

1 × Mounting Frame FirePlate

1 × Sixlobe Driver

10 × Biochips (BC002 with oxygen sensor spots)

20 × 2-Stop Tubing

90 × Luer Plug

24 × Mini Luer Plug

25 × Small Reservoir

50 × Luer Adapter

1 × Harvard Peristaltic Pump
