DynamicOrgan® TEER-Sensor System Pro - 0.4µm - S

The DynamicOrgan® TEER-Sensor System Pro contains the tighTEER readout unit together with all consumables required for continuous, non-invasive TEER monitoring in organ-on-chip experiments.

At the core of the system is the 2-channel biochip (BC002) with integrated semi-transparent electrodes, enabling direct measurement of trans-epithelial/trans-endothelial electrical resistance (TEER) inside the biochip. This allows continuous monitoring of tissue barrier function while maintaining compatibility with on-chip imaging.

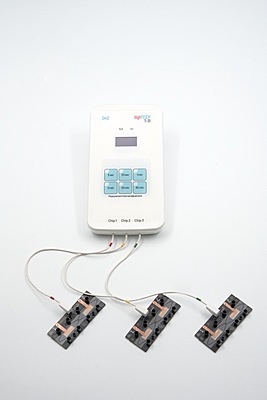

The tighTEER readout unit connects to the biochip via an integrated circuit board and measurement data is transmitted wirelessly to a computer via a usb-serial receiver and can be visualized in real-time.

Please note: the DynamicOrgan® TEER-Sensor System Pro does not contain a pump.

If you require a pump system within the kit, choose the DynamicOrgan® TEER-Sensor System Beginner.

Already have a compatible pump and the tighTEER readout unit? The DynamicOrgan® TEER-Sensor Kit S and M provide all required consumables to perform continuous on-chip TEER measurements.

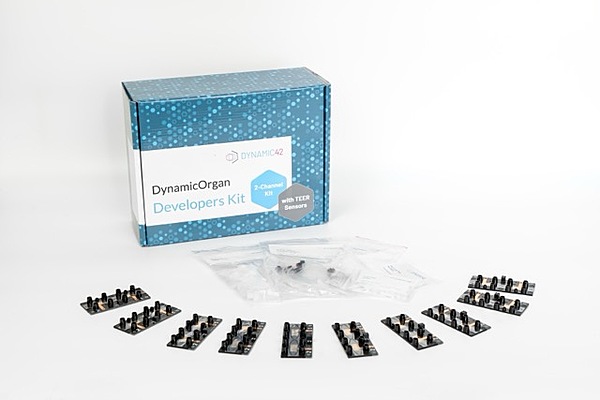

Contents

• 1 × tighTEER T-31 readout unit
• 1 × USB-Serial receiver
• 10 × Biochips (BC002 with TEER Sensors)
• 20 × 2-Stop Tubing
• 25 × Small Reservoir
• 50 × Luer Adapter
• 90 × Luer Plug
• 24 × Mini Luer Plug
