DynamicOrgan® O2-Sensor Kit - 0.4µm - S
The DynamicOrgan® O₂-Sensor Kit provides all consumables needed for real-time, non-invasive oxygen monitoring in organ-on-chip experiments.
This kit combines the 2-channel biochip (BC002) with biocompatible oxygen sensor spots from PyroScience for contactless oxygen monitoring directly inside the biochip. Sensor spots enable the measurement of general oxygen levels in the top channel or the calculation of oxygen consumption between in- and outlet in the bottom channel.
Readouts are performed with the PyroScience FirePlate and REDFLASH technology, detecting an oxygen-dependent luminescence signal.
Please note: the DynamicOrgan® O₂-Sensor Kit does not include the PyroScience FirePlate or a pump.
If you haven’t worked with our system before, choose the DynamicOrgan® O₂-Sensor System Beginner.
Already have a pump and only need the PyroScience FirePlate? The DynamicOrgan® O₂-Sensor System Pro is the right choice.Contents

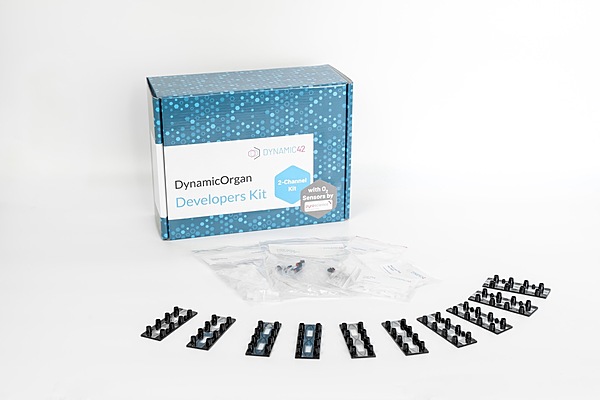

10 × Biochip BC002 with O₂-Sensors
20 × 2-Stop Tubing
25 × Small Reservoir
50 × Luer Adapter
90 × Luer Plug
24 × Mini Luer Plug
Biochip
- BiochipBC002
- Biochip MaterialPBT
- Membrane materialPET
- Membrane pore size0.4 µm
Consumables
- Tube inner diameter0.5 mm
- Reservoir Volume0.8 mL
