DynamicOrgan® O2-Sensor System Pro - 5µm - S

The DynamicOrgan® O₂-Sensor System Pro contains the PyroScience readout unit together with all consumables required for real-time, non-invasive oxygen monitoring in organ-on-chip experiments.

This kit combines the 2-channel biochip (BC002) with biocompatible oxygen sensor spots from PyroScience for contactless oxygen monitoring directly inside the biochip. Sensor spots enable the measurement of general oxygen levels in the top channel or the calculation of oxygen consumption between in- and outlet in the bottom channel.

Readouts are performed with the PyroScience FirePlate and REDFLASH technology, detecting an oxygen-dependent luminescence signal.

Please note: the DynamicOrgan® O₂-Sensor System Pro does not contain a pump.

If you require a pump system within the kit, choose the DynamicOrgan® O₂-Sensor System Beginner.

Already have a compatible pump and the PyroSience FirePlate? The DynamicOrgan® O₂-Sensor Kit S provides all required consumables to perform continuous on-chip oxygen measurements.

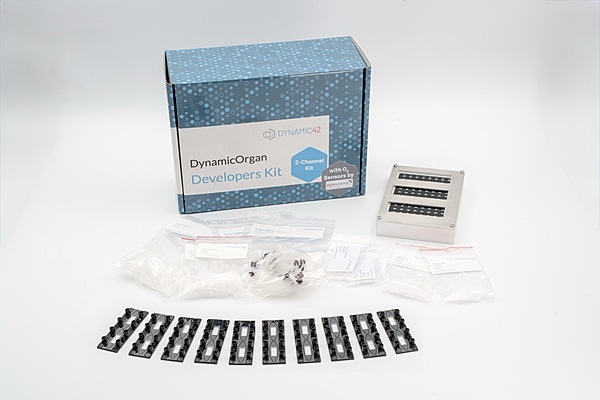

Contents

1 × PyroScience FirePlate

1 × Mounting Frame FirePlate

1 × Sixlobe Driver

10 × Biochips (BC002 with oxygen sensor spots)

20 × 2-Stop Tubing

90 × Luer Plug

24 × Mini Luer Plug

25 × Small Reservoir

50 × Luer Adapter
